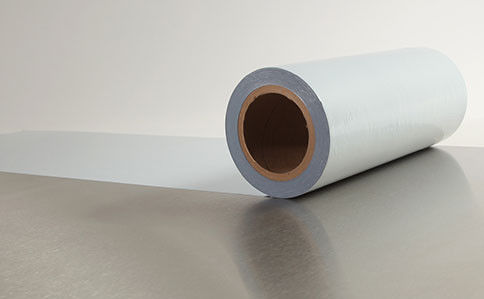

Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths

China Haining Huanan New Material Technology Co.,Ltd certification
China Haining Huanan New Material Technology Co.,Ltd certification
HNHN solved the problems that troubled us for a long time. This makes our production efficient and time-saving. Thank you so much.

—— Harry Santander

We have cooperated for many years. We grow together with each other's support. Your high quality products and technology have expanded the local market for me and win praise from customers. HNHN has witnessed my growth.

—— Askar Sultanov

Higher quality than what we got in the local market. Reasonable price, fast delivery, Nice package.Good serivice.

—— Ricardo Franklin

You have provided me with multiple samples for testing, and I am not bothered to provide me with various suggestions. In the end, your products are perfectly used on our production line. Solve a lot of troubles.

—— Daniel Stepper

I'm Online Chat Now

Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths

Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths
Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths

Large Image :  Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths

Product Details:
Place of Origin: China
Brand Name: HNHN
Certification: SGS,CE,ISO9001
Model Number: HN-BXG-1005
Payment & Shipping Terms:
Minimum Order Quantity: 5000 square meter, 10000 square meter with printing
Price: USD(0.03-5) / square meter
Packaging Details: Kraft paper, corrugated paper, air-cushion film, plastic ba cag carton box to pallet or containter
Delivery Time: 7-15days after first deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000000 Square Meter per Month
Detailed Product Description
Model: Stainless Steel Tape Film Printing: Offer Printing
Application: Heavy Deep Drawing Thickness: 60,75 Micron
Packing: Pallets And Cartons Adhesion: Rubber Based
Width Range: 100-1700mm Length Range: 25-2000m
High Light:

70mic Stainless Steel Protection Film

,

1000m Stainless Steel Protection Film

,

70mic stainless steel self adhesive film

Recyclable Stainless Steel Protective Film Heavy Deep Drawing Large Drawing Depths



Description

These rubber-based deep drawing films with their rubber-based adhesive system are suitable for any process requirement, especially for heavy deep drawing. They offer optimal protection during individual production and processing steps and throughout the whole processing chain. They contain minimal gel levels and excellent elasticity whilst adhering to even the most demanding shapes without tearing at the edges. Dependent on the product design they also have an extremely low memory effect which is critical in this process. They are, of course, fully recyclable.



Deep drawing films are always optimally matched to production requirements and provide reliable protection for valuable stainless steel surfaces against scratches and draw marks during light and heavy deep drawing.

Deep drawing is one of the most common processes for forming stainless steel sheets. HNHN's deep drawing films support and protect during this process. As a result of their specially developed adhesive and film formulations, these films have the required restorative forces and adhesive properties to easily withstand the forces encountered during the forming process.



Our two kinds of stainless steel protective film for deep drawing:

1. Light deep drawing: Low drawing depths.



2. Heavy deep drawing: Large drawing depths.



Specification



Product Name Stainless Steel Protective Film
Adhesive 0.05N-8N/25mm or 5g-800g/25mm
Tensile Strength 70Mpa
High Temperature 48 hours for 70degrees
Low Temperature 6 hours for 40 degrees below zero
Product Highlights • eco-fiendly and healthy.
• easy to paste,seay to tear
• protect the surface from scratch, drawing, bending
• no air bubbles,no crease when application.
• enough adhesion and no glue residue.
• save your labor force and maintain your product value.
• save your cost and gain profit.
• customize your stickness for your special surfaces
• color printing with logo and company information



Usage Provide a protective barrier to scratch, mark, damage and dirt at the processof bending,pressing, punching, cutting, drilling, milling, roll forming,transportation and installation.
Base Material Polyethylene (PE)
Glue Water-based acrylic / solvent-based acrylic / natural rubber
Color Transparent, blue, white, black and white, green and so on.
Print Up to 3 colors
Usage Provide a protective barrier to scratch, mark, damage and dirt at the processof bending,pressing, punching, cutting, drilling, milling, roll forming,transportation and installation.
Thickness 30-150 microns Widely used 35/45/50/70/80/100 microns
Width 100-2000 mm Widely used 1000/1100/1220/1250 mm
Length 100-2000 m Widely used 200m, 500m, 100m
180˚ Peel Strength 20-500 g/25mm Widely used 150/200/250/350 g/25mm
Tensile Strength Trasv> 8N/25mm
Longi> 15N/25mm
Elongation Trasv> 300%
Longi> 180%

Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths 0

What is the product application?

Preserve any type of stainless steel surface finish, including: 2B, Scotch Brite, BA "Bright Annealed" 3D,No.3,No.4,HL plate,304,430,ETC.

What is our package and shipping?

Packing Details :

1. Inner packing:Plastic core or paper core
2. Outer packing: carton box for small rolls, Corrugated paperKraft paper, for jumbo rolls, water-proof film wrapped outside the pallet
3. Wooden boxes if necessary.



Shipping Term:
Shipping by: Air Freight, Sea Freight, Express Delivery (DHL, UPS, FEDEX, TNT, EMS,etc)

Shipping time: 1. Air shipping: around 3-7 working days 3. Sea: around 4 weeks to arrive (depending on destination port)

Loading Port: Shanghai,Ningbo Port, China



Delivery Details

7-30 days after confirming order,detail delivery date should be decided according to the order quantity.

Recyclable 1000m 70mic Stainless Steel Protection Film Heavy Deep Drawing Large Drawing Depths 1

How to storage?

1. Products should be stored in ventilated and dry warehouse.
2. Keep away from fire and avoid direct sunlight.

How is our service?
1.24 hours online to figure out your needs

2. If needed, samples will be free for you to test the adhesion

3. Professional sales will recommend you how to choose proper films

4. We will track every process after our cooperation

5.  Learn about your usage and solve your problems immedially

6. We are always at your service as your partner and friends
