LLDPE 200ft 24'' 3 Mill 0.075mm HVAC Duct Protection Film
  • LLDPE 200ft 24'' 3 Mill 0.075mm HVAC Duct Protection Film
  • LLDPE 200ft 24'' 3 Mill 0.075mm HVAC Duct Protection Film

LLDPE 200ft 24'' 3 Mill 0.075mm HVAC Duct Protection Film

Place of Origin China
Brand Name HNHN
Certification SGS,CE,ISO9001
Model Number HN-GD-0910
Product Details
Protective Film
Processing Type:
Blow Molding
PE Temporary HVAC Duct Cover
Openning Ductwork
Water Based Acrylic
High Light:

0.075mm HVAC Duct Protection Film


3 mill HVAC Duct Protection Film


0.075mm clear vinyl protective film

Product Description

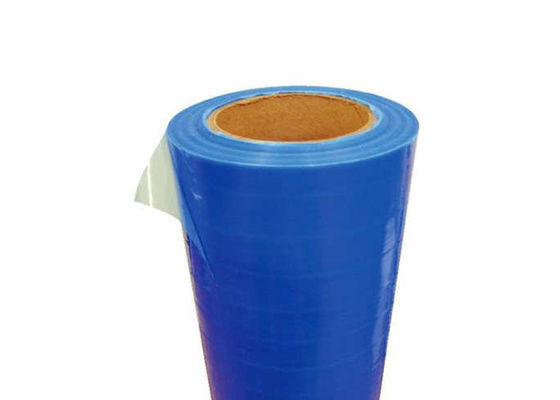

Duct Protection Film, 200 ft. Length, 24" Width, Linear Low Density Polyethylene



HNHN is a leading MANUFACTURER of protective films to take your order at any time of day. We have several experienced  technicians on staff to help and support you on various aspects of any film project. If you would like to place an order over the phone or have questions for us. Please feel free to contact us.


  • Thicker than most other duct wrapping films
  • Durable and flexible
  • Self-adhesive inner surface
  • Excellent adhesion to duct & fittings
  • Easily removable without leaving residue in most temperatures


  • Application: Galvanized Steel, Stainless Steel, Aluminum
  • Tensile Strength: Minimum 10 psi
  • Elongation: Twice its original length
  • UV resistant and waterproof
  • Color: Blue
  • Disposal: Recyclable

The Duct Protection Film is designed as a temporary closure to protect uninstalled and partially installed ductwork from contaminants such as dirt, dust, and other particulates that can accumulate in the duct that can lead to poor indoor air quality. It is highly conformable and puncture resistant. The adhesive system contains anti-bacterial agents and is designed for use on metal substrates which allows for a clean residue-free removal.


Roll sizes available:

  • 24 inch by 200 foot roll, 3 mill
  • 36 inch by 200 foot roll, 3 mill
  • 48 inch by 200 foot roll, 3 mill
  • 60 inch by 200 foot roll, 3 mill
  • 24 inch by 200 foot roll, 2 mill
  • 36 inch by 200 foot roll, 2 mill
  • 48 inch by 200 foot roll, 2 mill
  • 60 inch by 200 foot roll, 2 mill


What is the data information?

Thickness: 45microns,2mil, 2.5mil, 3mil
Peel adhesion to stainless steel: 1.6N/cm
Breaking strength: 4100psi,this figure is correct, we export this kind of films to many countries.
Elongation at break: 600%
Tensile strength: 2.0mil:9.0 lbs/in
Features: Removable: can be removed without leaving any residue
Soft: product remains intact over bends and curved surfaces
Durable: High resistance to tears
UV resistance: good
Normal size: 24’’x200’, 24’’x400’, 36’’x200’, 36’’x600’, 48’’x200’, 48’’x800’, 60''x600’ other size can be made as your requirement.
Shelf life Can be used well under room temperature and avoid from direct sunlight.


LLDPE 200ft 24'' 3 Mill 0.075mm HVAC Duct Protection Film 0

What is the product application?

Duct Cover Shield provides temporary closures on open ductwork and prevents construction dust and debris from entering the duct work system, significantly reducing wipe down time and cost

What is our package and shipping?

Packing Details :

1. Inner packing:Plastic core or paper core
2. Outer packing: carton box for small rolls, Corrugated paperKraft paper, for jumbo rolls, water-proof film wrapped outside the pallet
3. Wooden boxes if necessary.


Shipping Term:
Shipping by: Air Freight, Sea Freight, Express Delivery (DHL, UPS, FEDEX, TNT, EMS,etc)

Shipping time: 1. Air shipping: around 3-7 working days 3. Sea: around 4 weeks to arrive (depending on destination port)

Loading Port: Shanghai,Ningbo Port, China


Delivery Details

7-30 days after confirming order,detail delivery date should be decided according to the order quantity.

LLDPE 200ft 24'' 3 Mill 0.075mm HVAC Duct Protection Film 1

How to storage?

1. Products should be stored in ventilated and dry warehouse.
2. Keep away from fire and avoid direct sunlight.

How is our service?
1. 24 hours online to figure out your needs

2. If needed, samples will be free for you to test the adhesion

3. Professional sales will recommend you how to choose proper films

4. We will track every process after our cooperation

5.  Learn about your usage and solve your problems immedially

6. We are always at your service as your partner and friends
