Prepainted 1700mm 1000m Metal Surface Protection Film Hood Paint Protection
  • Prepainted 1700mm 1000m Metal Surface Protection Film Hood Paint Protection
  • Prepainted 1700mm 1000m Metal Surface Protection Film Hood Paint Protection

Prepainted 1700mm 1000m Metal Surface Protection Film Hood Paint Protection

Place of Origin China
Brand Name HNHN
Certification SGS,CE,ISO9001
Model Number HN-JS-0604
Product Details
Poly Ethylene
Prepainted Metal Steel Surface Protection Sheet
Anti Scratch Metal Protection
Water-based Acrylic Eco-friendly
Kraft Paper, Corrugated Paper To Pallet
Width Range:
Length Range:
High Light:

1700mm metal surface protection film


1000m metal surface protection film


1700mm protective plastic film for metal

Product Description

Prepainted Metal Steel Surface Protection Sheet Hood Paint Protection Film Anti Proof



In addition to the sprayed metal, the original metal must also be protected during processingCasting,Polishing,Cutting,Bending.

Anodized and stainless steel metals face many fabricating, finishing, handling & shipping processes. Those environments put that mill, bright, brushed finish at risk from scratches, damage or contamination. The performance of our protective films allows you to do almost anything to metal – Except Damage It. If you’re a fabricator or metal service center, you can count on our protective film solutions to ensure your metal emerges from bending, drilling, stamping, shearing and assembly processes without damage. We have the portfolio of products to protect many applications in this industry.

Additional Applications

· Food service equipment

· HVAC duct systems

· Architectural panels

· Laser-cut metals


We will customize different viscosities for you according to your different surfaces. Produce the protective film suitable for your products for you. While protecting your product, it will not negatively affect its surface. Greatly improve your work efficiency.

Product Name Prepainted Metal Steel Surface Protection Sheet
Adhesive 0.05N-8N/25mm or 5g-800g/25mm
Tensile Strength 70Mpa
High Temperature 48 hours for 70degrees
Low Temperature 6 hours for 40 degrees below zero
Product Highlights • eco-fiendly and healthy.
• easy to paste,seay to tear
• protect the surface from scratch and dirty pollution.
• no air bubbles,no crease when application.
• enough adhesion and no glue residue.
• save your labor force and maintain your product value.
• save your cost and gain profit.
• customize your stickness for your special surfaces
• color printing with logo and company information


What is the data information?

Load test: 360 hours under the temperature of 25℃-50℃, the film bears the load of /SPCM2. After being peeled off, there is no residue on substrate’s surface.
UV resistance aging test: . Under the temperature of 50℃, be irradiated for 60 hours by 300w ultraviolet lamp, the film keeps its shape. No residue after being peeled off
Paste performance test: a. Bending with substrate in 90 degree, the film has no break and doesn’t fall off.
b. Leave no residue on the paint film surface after being peeled off.
Moisture resistance aging test: 60℃ + 80% for 240 hours, the film doesn’t fall off and there is no residue or corrosion after being peeled off.

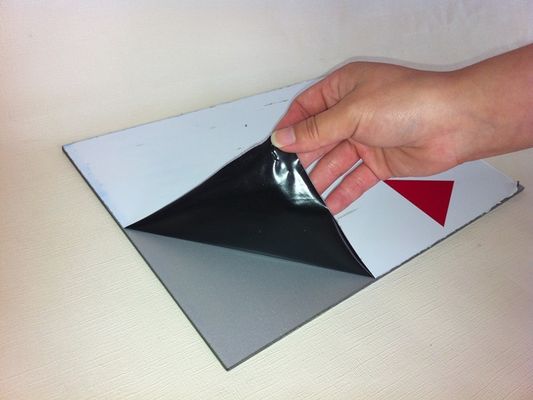

Prepainted 1700mm 1000m Metal Surface Protection Film Hood Paint Protection 0

What is the product application?

Application: construction and decorative materials like aluminum composite panel, sandwich panel,aluminum sheet, aluminum profile,Stainless Steel or unpainted  or Painted Metals and other kinds of metal surfaces. Also suitable for Industrial processing and home appliance processing

What is our package and shipping?

Packing Details :

1. Inner packing:Plastic core or paper core
2. Outer packing: carton box for small rolls, Corrugated paperKraft paper, for jumbo rolls, water-proof film wrapped outside the pallet
3. Wooden boxes if necessary.


Shipping Term:
Shipping by: Air Freight, Sea Freight, Express Delivery (DHL, UPS, FEDEX, TNT, EMS,etc)

Shipping time: 1. Air shipping: around 3-7 working days 3. Sea: around 4 weeks to arrive (depending on destination port)

Loading Port: Shanghai,Ningbo Port, China


Delivery Details

7-30 days after confirming order,detail delivery date should be decided according to the order quantity.

Prepainted 1700mm 1000m Metal Surface Protection Film Hood Paint Protection 1

How to storage?

1. Products should be stored in ventilated and dry warehouse.
2. Keep away from fire and avoid direct sunlight.

How is our service?
1. 24 hours online to figure out your needs

2. If needed, samples will be free for you to test the adhesion

3. Professional sales will recommend you how to choose proper films

4. We will track every process after our cooperation

5.  Learn about your usage and solve your problems immedially

6. We are always at your service as your partner and friends
